DC Circuit Breaker ARC5000

Features

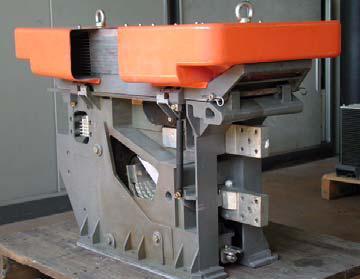

The circuit breaker consists of two main part
assembly :
- the body (also called frame - 1) which is common part of the range
- the arc chute (2) with two main versions (for 750V and 1500V applications)

Applications

The ARC 850 and ARC 1550 circuit breakers are direct current unipolar devices with a bi-directional over-current and trip free
release. These are electromagnetic control devices.
Products from 5000A ARC range have a common general architecture and differ by the size of the arc chute (function of the operating voltage).

Benefits

Their compactness make the ARC5000A circuit breakers particularly
adaptable to assembly in shielded cases of the industrial type cabinets for fixed installations.
The circuit breaker design leads to an easy maintenance and high number of operations.
The main wearing parts may be changed without completely dismantling the circuit breaker.

Material Number

TRK5650523200

Attachments

[0682p00000T6H6c] Technical_Description_ARC5000 ed1.pdf
